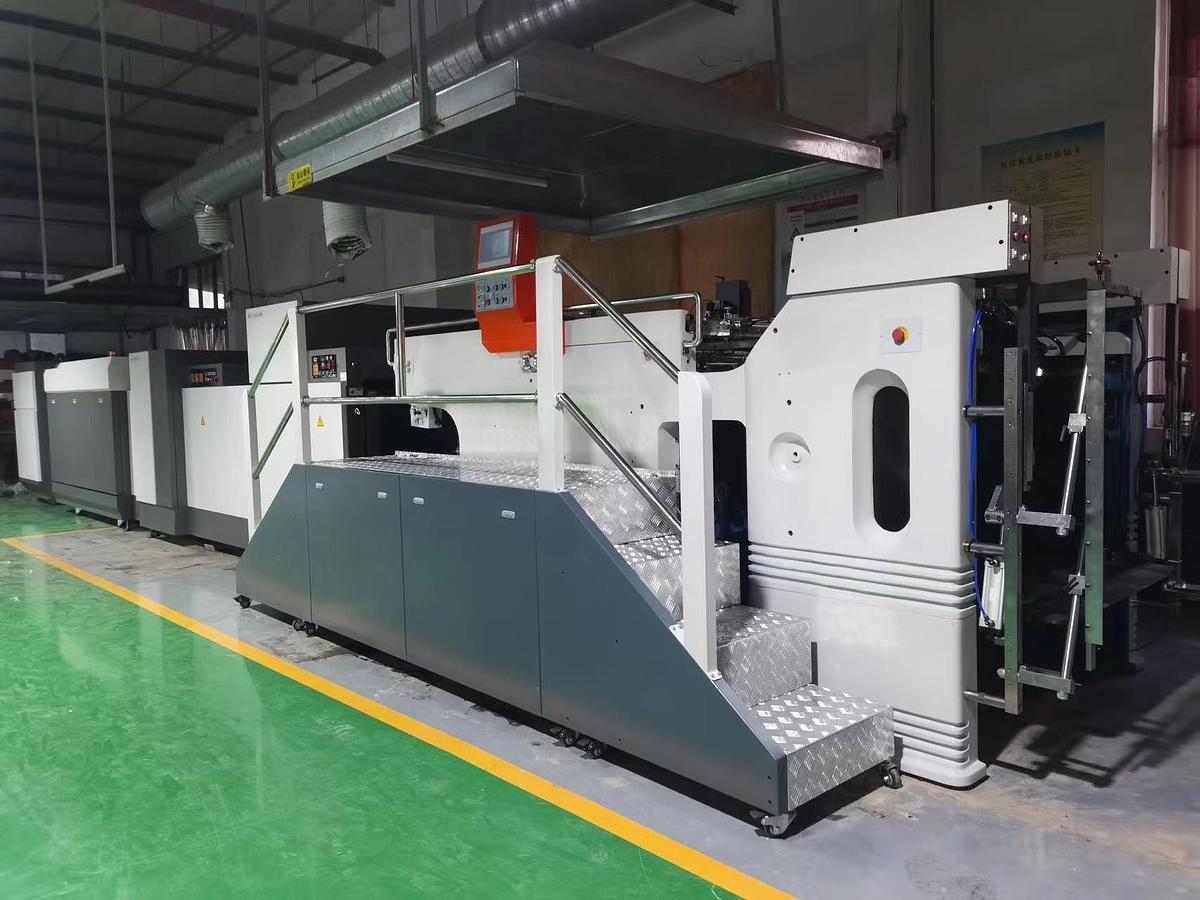

Automatic Stop Cylinder Screen Printing Machine

This is an Automatic Stop Cylinder Screen Printing Machine

Production line：

+ ST-1050 Automatic Stop Cylinder Screen Printing Machine

+ UV Curing Machine

+Cooling Unit

+Automatic Sheet Stacker

Functions:

• Low power,high-efficiency
• High-accuracy, zero waste
• No scratches on the high-grade prints
• Drawer-type frame design and unique Rectifying device
• Multi-functional paper feeding method

Low power,high-efficiency

With the world’s latest design to keep space with the 360 degree turn cylinder principle, the printing speed can be up to 4000pcs/h, But the main motor power is only 5 kw.

Compared with the traditional automatic screen printing machine, the speed has been increased by more than 30%, and the main motor power is reduced by 80%.The new type of middle Pneumatic brake can greatly reduce the inertia impact when the high-speed printing stops suddenly, thus protecting the machine and extending the machine life greatly

High-accuracy, zero waste

On the machine left and right sides, the unique free switch of the push or pull gauge device can meet the precise overprinting of the 80-400gsm paper, the side gauge and roller are equipped with the optical fiber electric sensor monitoring to ensure theaccuracy of each print. After printing pressure adjustment and calibration, the printing process is guaranteed to be consistent through the special holding brake lock. The gripping paper controlled by cam makes any group of the pre-tightening force of gripping paper adjuting to the best state. The machine can achieve zero waste printing.

No scratches on the high-grade prints

The new front stopper and flat press tongue Design has replaced the traditional the hook front gauge, and the roller and brush feeding has replaced the traditional stee and glass ball feeding. And each roller and brush has a separate self-locking worm adjusting device. The paper feeding table has the function of vacuum adsorption especially for the thin printing materials, so that the printing products can follow the paper table to the photoelectric tracking of the front gauge of the roller to guarantee the high-grade printing without scratches.

Drawer-type frame design and unique Rectifying device

The drawer-type frame can be pulled out as the whole unit, convenient for checking and cleaning loading and uploading 、adjusting the printing plate and no need for calibrating the plate again. Euipped with the ink plate, it can prevent the ink from the return blade and scrapter drips onto the roller.Special fine-tuning deviceis attached to the mesh framde(optional and help to fine-tune the screen to achieve accurate overprint requirements.

Multi-functional paper feeding method

Paper feeding can be based on the printing needs, Fastly change the single sheet feed or continuous feed, after printing the last sheet, it have the automatical delivery function, no need to take by hand, thus improving the production efficiency, easy operation.
