Sheet Feeding Paper Bag Tube Forming
Sheet Feeding Paper Bag Tube Forming
Location:Bologna, Italy
Available quantity:1
or
Call +359 2 492 9330
Description

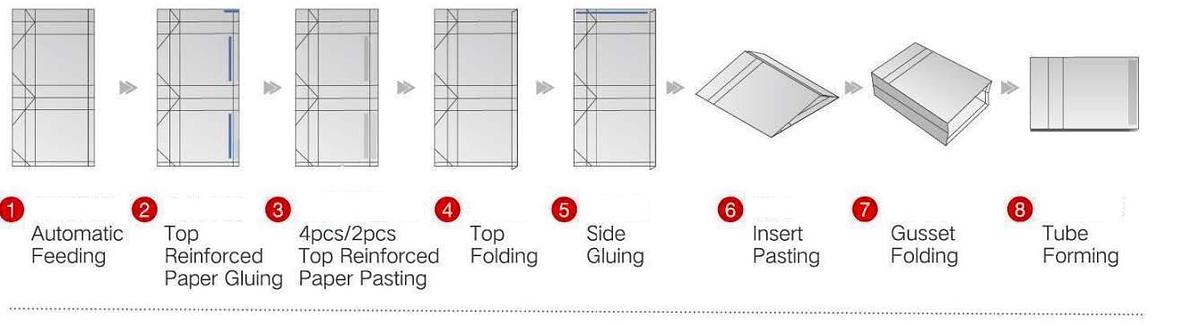

The tube forming machine basic working flow is sheet feeding,, servo top reinforced card taking and pasting Top Reinforce Cardboard, top folding (insert pasting), tube forming, gusset forming, compaction and output. All these steps increase the bag making efficiency and reduce the setup time, save a lot of labor cost for top reinforced card pasting and bottom cardboard inserting . Realize automation, intelligent and high efficiency production requirement.
**as optional is available as extra cost the 4pcs top reinforce cardboard.
Specifications
| Manufacturer | BBS |
| Model | 1200CT-450B |
| Condition | New |
| Stock Number | 6258482 |

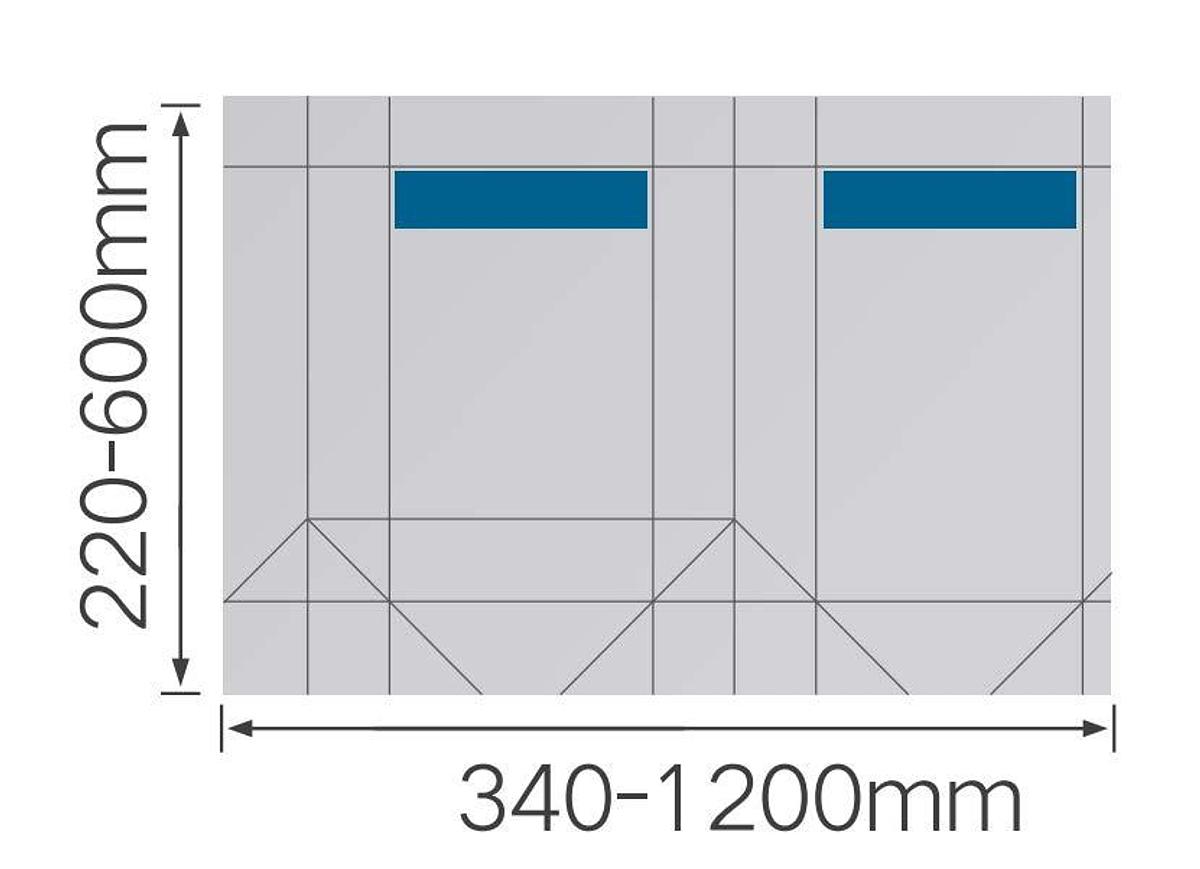

| Max.sheet (LX W ZB1200CT-450B ): | 1200x600 mm |
| Min.sheet (LX W): | 340x220 mm |
| Sheet weight: | 110-300 g/㎡ |
| Top folding width: | 30-60 mm |
| Paper Bag Tube Length: | 190-570 mm |

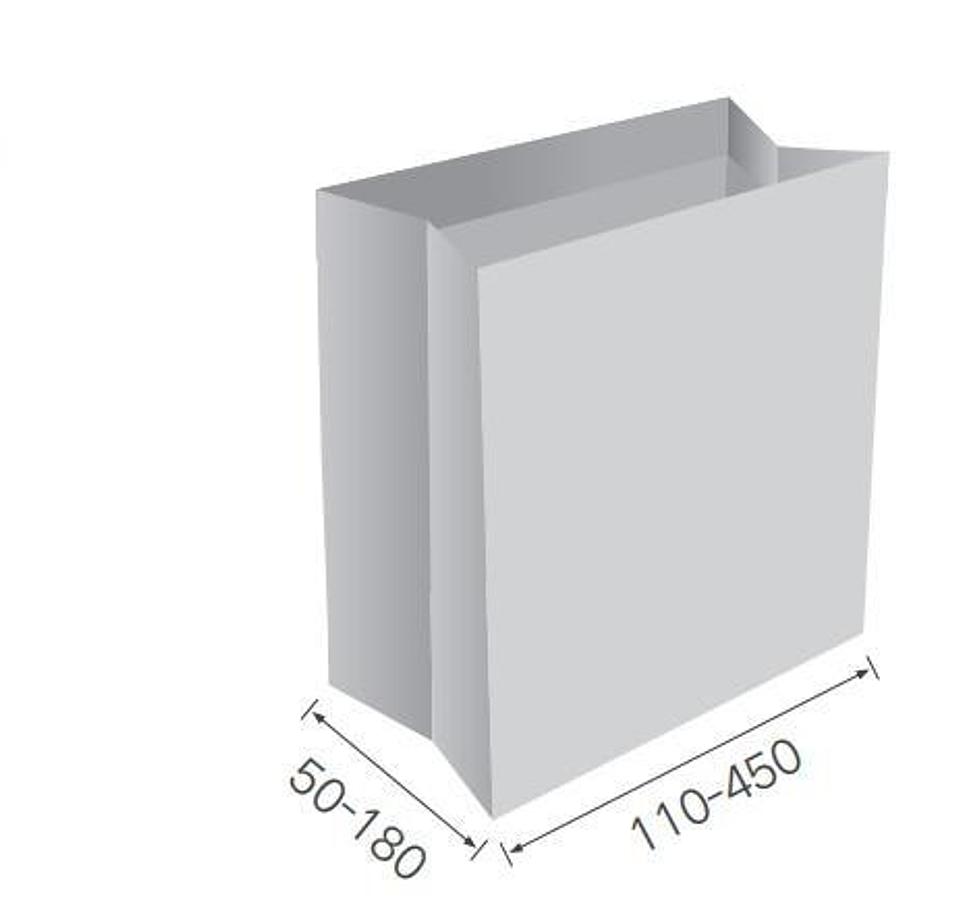

| Bottom Width(Gusset): | 50-180 mm |
| Bag Width: | 110-450 mm |
| Top Reinforce Cardboard Weight: | 200-500 g/㎡ |
| Top Reinforce Cardboard Length: | 90-430 mm |
| Top Reinforce Cardboard Width: | 25-50 mm |
| Speed: | 40-80 bags/min |
| Machine Size(LxWxH): | 16400x2060x1800 mm |
| Total/Production Power: | 70.3/42.2 kw |
| Voltage: | 380V |
| Total Weight: | 12T |
| Glue Type: | Water Base Glue And Hot-melt Glue |
