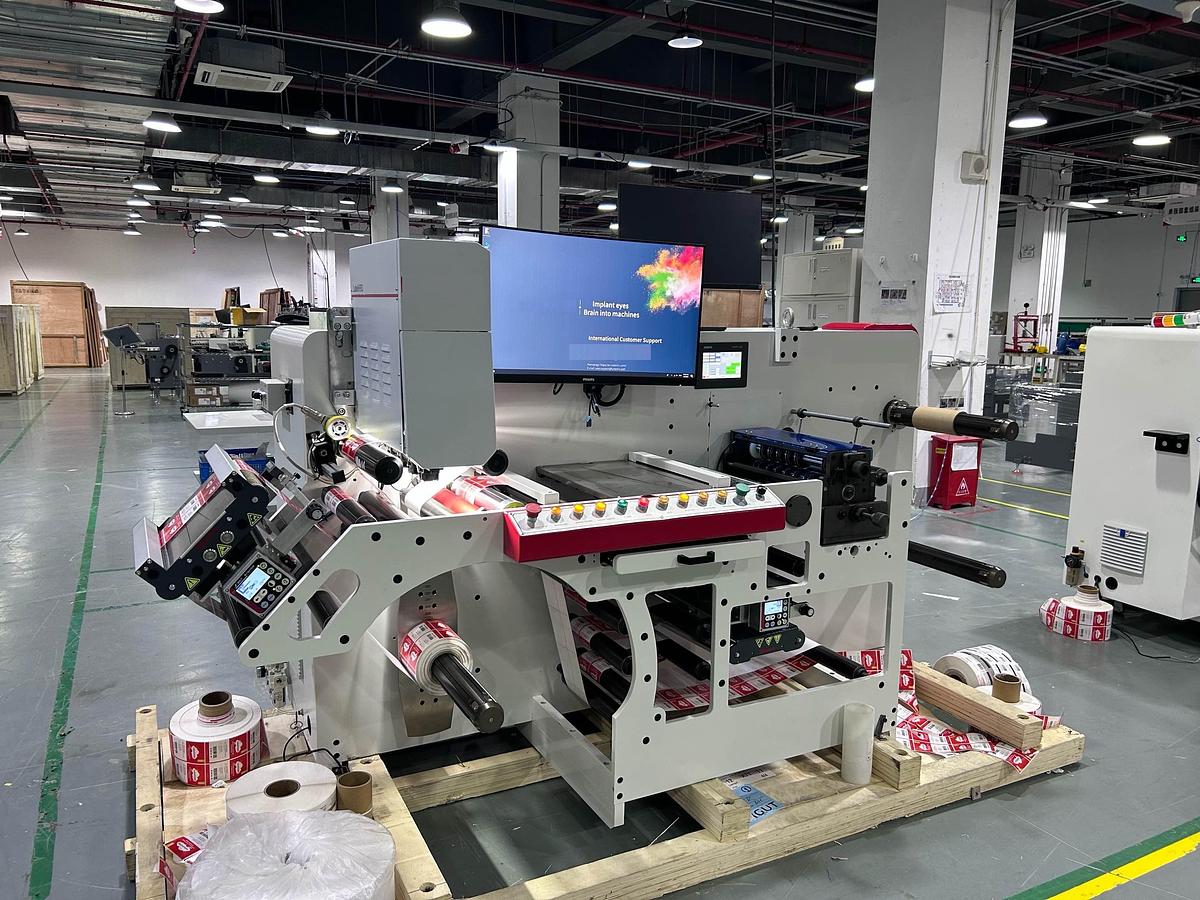

Printing Inspection System 450

LabelHero 450mm slitter rewinder with max. speed 200 m/min, max. unwind diameter 700mm, rewind diameter upper 450mm and lower 450mm, 2 Web guide from BST, 10 Shear blades, Control system (PLC & Extended system) Innovance, 4 Servos from innovance, 1 touch screen from Siemens, Component & switch from Schneider.

offline Quality Inspection System: Max. width 450mm, Max. inspection speed 160m/min; one 4K resolution color linescan camera, front and back side special LED light; International inspection software version English & Spanish Version

Vision Inspection System Specification

• Application: Beauty & personal care label, food label, healthcare label, beverage label, wine label, pharmaceutical label and other self-adhesive labels.
• Material Type: Opaque, transparent and reflective substrates
• Defect Types: Dirty spot, ink spot, white spot, missing print, mis-registration, improper die-cutting & stamping, broken writing, color variation, foreign objects etc.
• Max. Width 450mm
• Max. inspection
• Speed 160m/min
• Min. Defect Accuracy 0.06mm²（4K）/ 0.04mm² （8K）
• Mis-Registration ≥ 0.1mm
• Color Deviation △E≥3
• Temperature/Humidity 0℃～ 50℃/ 20% ~ 60%
• Operation System Windows 10, 64-bit, English version

Vision Inspection System Configuration

• Inspection software:Vision Print 7 Chinese/English/Thai Edition
• General defects inspection module
• Die-cut inspection module
• Text inspection module
• Quality report and analysis module
• ColorHERO software module (optional)
• CodeHERO software module (optional)

Imaging Process Unit:

• 1 high-speed image acquisition and processing card
• 1 high speed image processing industrial computer (2TB storage)

Vision Imaging Unit:

• 1 4K resolution RGB color high-frequency line-scan industrial camera from Japan
• 1 high-speed optical lens
• 1 high-light LED light source, 1 back light source

Electronic Control Unit:

• 1 pcs 2K resolution encoder
• 1 pcs camera power source supply
• 2 pcs LED lights supply
• 1 pcs electronics connection pad
• 1 pcs control cabinet

Other Modules

• Light and Sound Alarm
• Quality Report & Statistics
• 1 pcs 32" HD monitor display
• 1 pcs industrial air conditioner
• 1 pcs uninterruptible power supply
• 1 set of standard toll kit
