Pharma Folder OUTSERT MACHINE

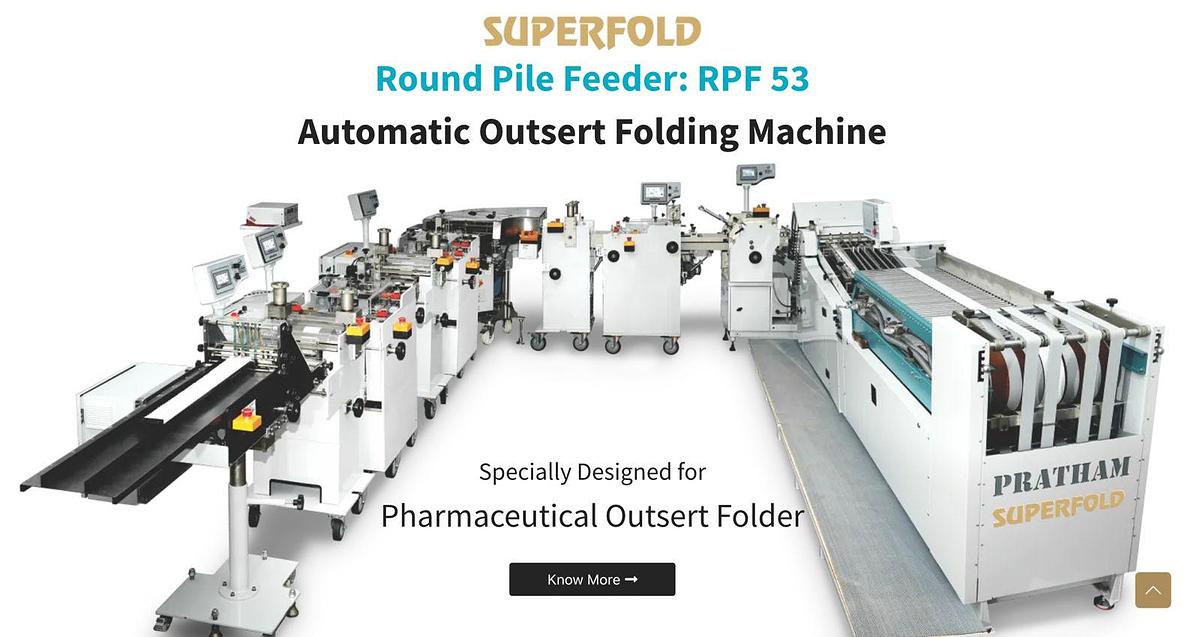

Nr. 1 ROUND PILE FEEDER 53:

This continuous round pile feeder is designed for uninterrupted production. It is equipped with an ultrasonic double sheet detector, a batch counter, an alignment table and a touchscreen PLC control unit. It can handle a wide range of papers with different GSMs, from 28 to 90.

• The maximum sheet size is 530 mm wide by 1020 mm long.
• The minimum sheet size is 160 mm wide by 210 mm long.

Nr. 1 FOLD STATION 1: RPF-53/16

Folding station: The Superfold RPF-53/16 folding unit is equipped with 16 stainless steel folding trays and 15 deflector plates. It has a caliper setting to adjust the gap between the two rollers. All rollers are metal and PU combination. Fold length settings are made using position indicators. The belt drive on both sides ensures stable folding operation. A double sheet and wrong pharma code ejector is built in, diverting the paper before it enters the fold station. Thirteen sets of scores are supplied with the folding station.

Nr. 1 VARIABLE SPEED FAST DELIVERY CONVEYOR: VS FDC 53

Nr. 1 RIGHT ANGLE 4 FOLD MACHINE - SLIDING (BFC 15/4 Pro):

The Superfold BFC-15/4 Pro right-angle folding machine is equipped with an extra-long roller conveyor that smoothly feeds 530 mm-wide folded sheets to the folding unit. The machine's patented design facilitates longer usage of the folding rollers. The folding rollers are made of a steel and PU combination. The unique gear drive system enables folds of a higher thickness to be set.

Nr. 3 PARALLEL KNIFE: KNIFE 150

This is a parallel knife folding machine for thick folds, with sheet running and jam control.

• Max width for outsert sample: 150 mm.
• Maximum height: 75 mm.
• Minimum width: 30 mm.
• Min height: 30 mm.
• Maximum thickness for leaflets: 16 mm.
• Minimum thickness for leaflets: 2.5 mm
• Power specification: 230 V (single phase), 50 Hz, 0.5 kW.
• Pneumatic pressure: 4–6 bar.

Nr. 3 PRESSING UNITS (PRESSING 150):

A pressing machine for thick folds with sheet running and jam control.

• Maximum width for outsert sample: 150 mm.
• Maximum height: 75 mm.
• Minimum width: 30 mm.
• Minimum height: 30 mm.
• Maximum thickness for leaflets: 16 mm.
• Minimum thickness for leaflets: 2.5 mm
• Power specification: 230 V (single phase), 50 Hz, 0.5 kW.

Nr. 1 VERTICAL STACKER FOR OUTSERTS (OUTSERT STACKER 150 PRO):

• Max. Size: 150 x 75 mm (width x height).
• Min. Size: 28 x 28 mm
• Stacking folding thickness: 2–16 mm
• Stacking length: 1,100 mm
• Speed: 60 m/min (depending on folding format and paper quality).
• Voltage: 220 VAC, 50/60 Hz
• Dimensions: 1700 x 470 x 1200 mm (L x W x H)
• Weight: 80 kg.
• Pneumatic pressure: 4–6 bar
• Batching and counting

Nr. 1 HHS 2 GUN CLUING SYSTEM WITH CONTROLLER (HHS GLUING- 2 GUN):

Baumer HHS glueing system with two-gun DB15 system, two-gun controller, double gun kit and related accessories.

Pneumatic pressure: 4–6 bar

Nr. 1 HHS WATER SCORING SYSTEM 8 NOZZLES (HHS WS 8 NOZZLES):

HHS system with water scoring equipment comprising eight nozzles, a tank, tubes, brackets, a photocell and an encoder.

Nr. 1 VISION INSPECTION - ADVANCE PCSPL (VISION):

• Min. Size: 150 x 150 mm
• Camera: Baumer (German)
• IPC: 10.4"
• Console unit:
• Object sensor and assembly
• Camera mounting brackets
• Cable and connectors.
• Documents: Manual (IQ, OQ and PQ chargeable).
• Can check: Pattern Match, Pharma Code, Barcode, 2D Code, 1D Code
• It will only work with the Windows 10 operating system, with different versions for blank sheets, 2D codes, pharma codes, etc.
• Voltage: 220 VAC, 50/60 Hz

TURN TABLE (SUPER TURN STATION 150):

• Width: 400 mm
• Conveying angle: 90°.
• Inside radius: 300 mm
• Height: 825–840 mm (adjustable).
• Conveying direction: Right to left
• Speed: 60 m/min
• Min. Distance in front and behind: 25 mm
• Voltage: 220 VAC, 50/60 Hz
