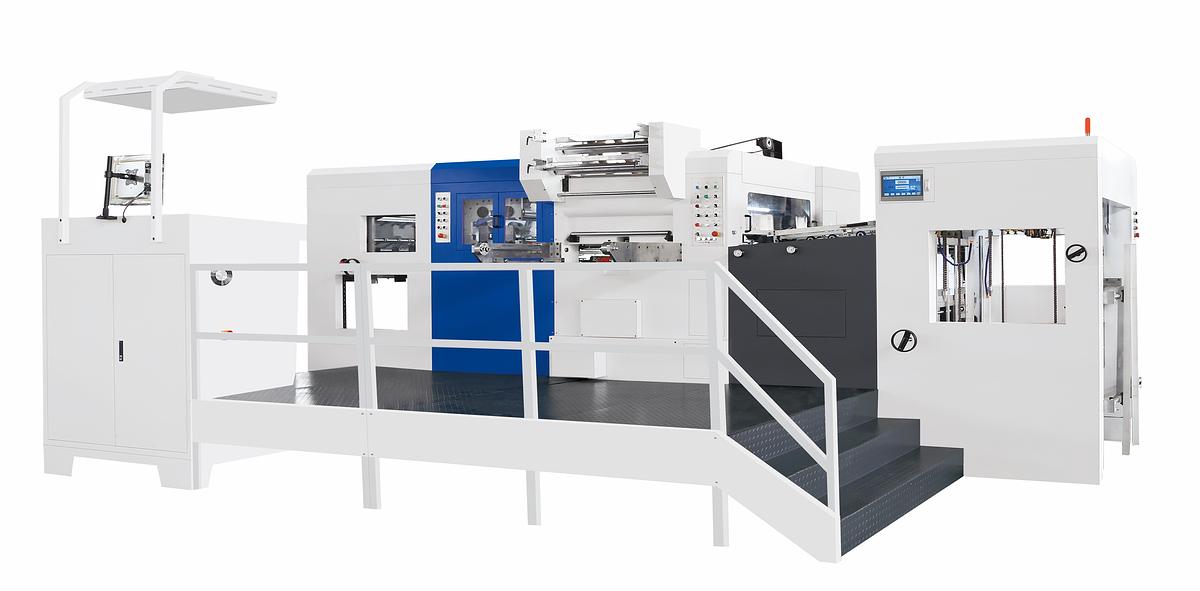

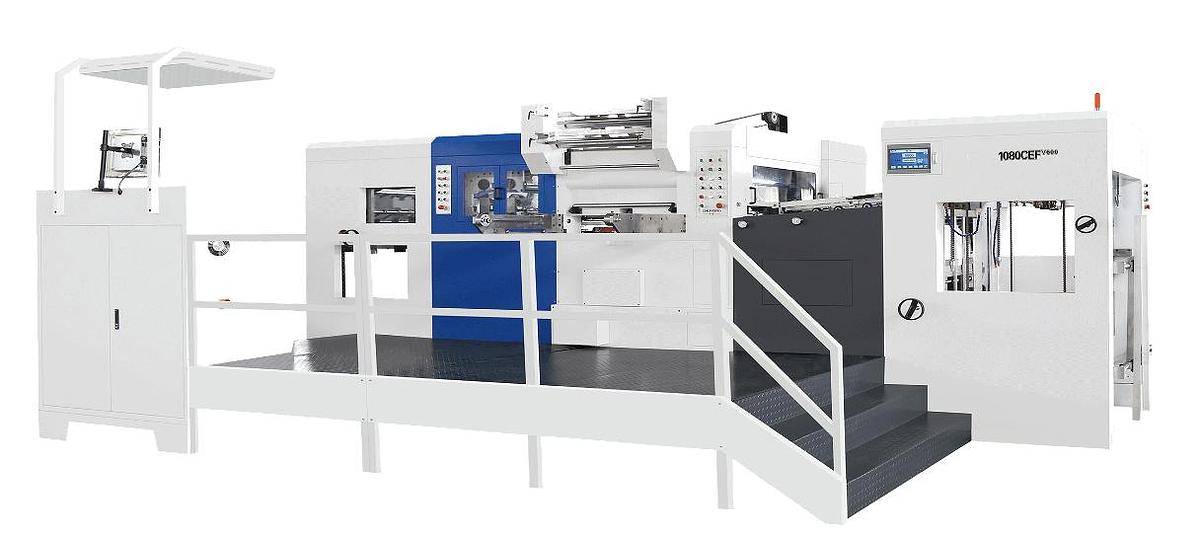

Die Cutting&Embossing&Foil Stamping Machine 1080CEF

Main Characteristics

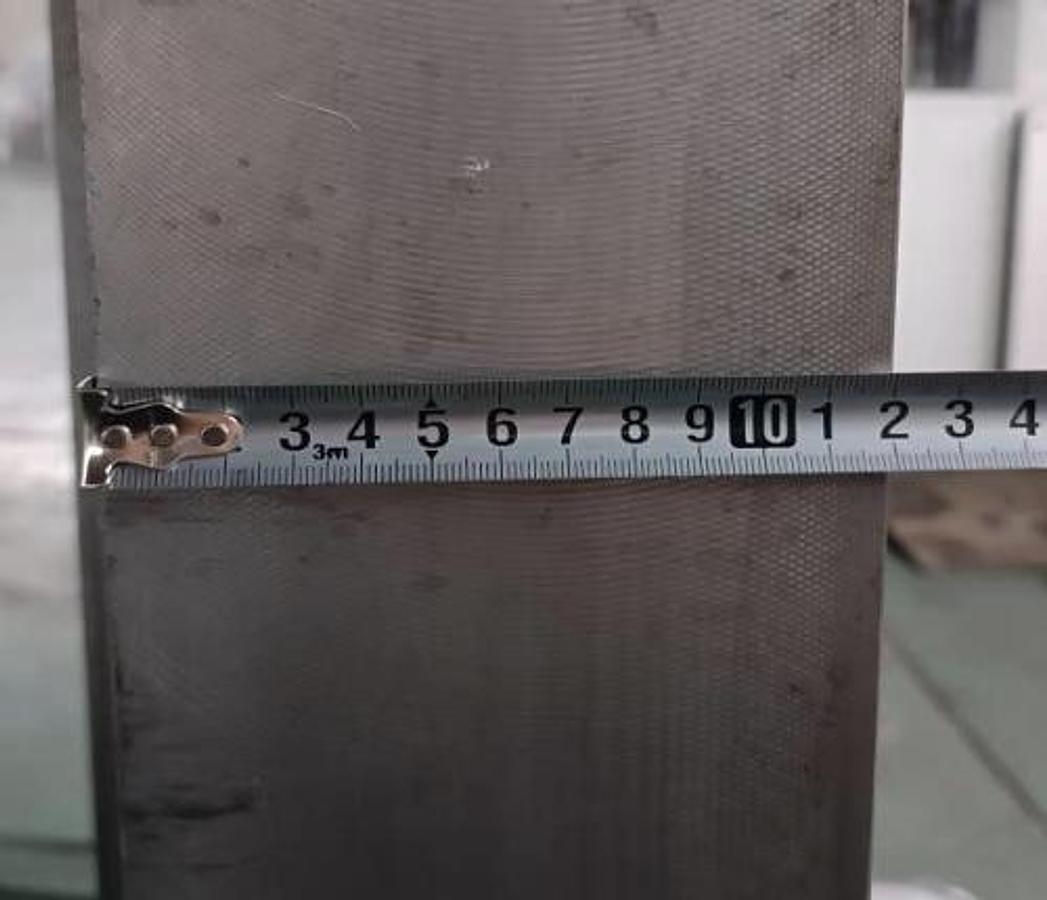

• The major wall panel’s thickness is 120mm, and its max pressure is 660 Tons, so as to meet deep embossing demand.

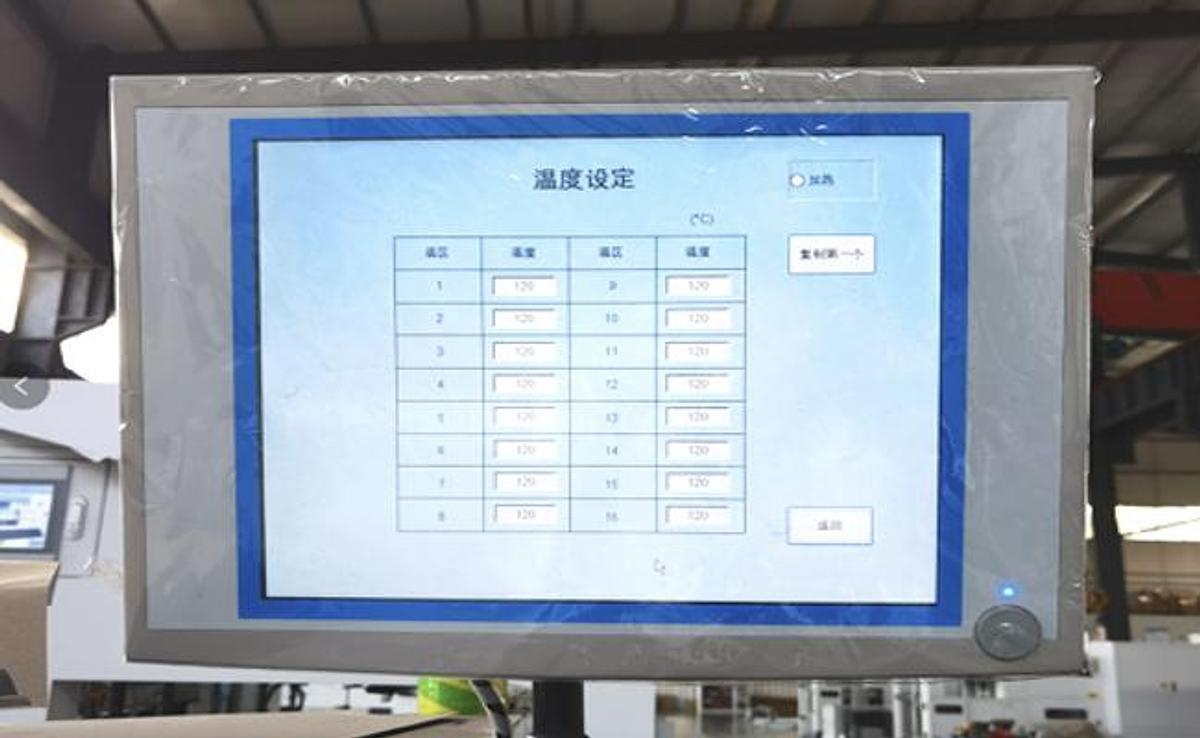

• It have 12 sets individually adjustable heating zone for embossing.
• The dwell delay and finalize function make the deep embossing appearance better.

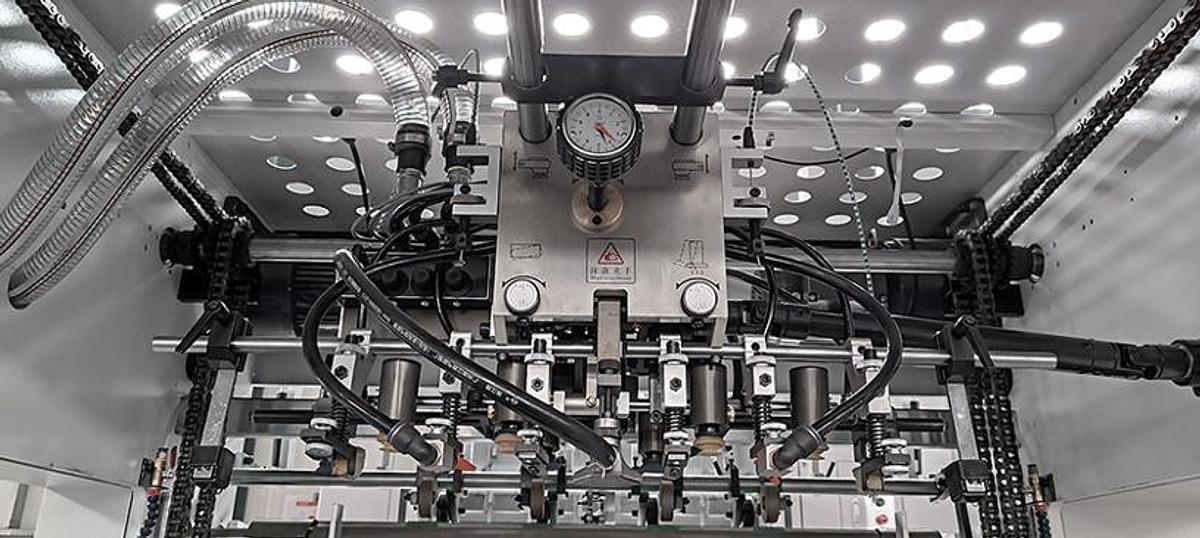

• The feeder has 4 suckers for lifting paper and 4 for forwarding paper to ensure stable and fast paper feeding.
• With Preload device, main and deputy paper advance mechanism can non-stop feeding.
• Electric front lay are equipped with 4 fiber optic detector switch.

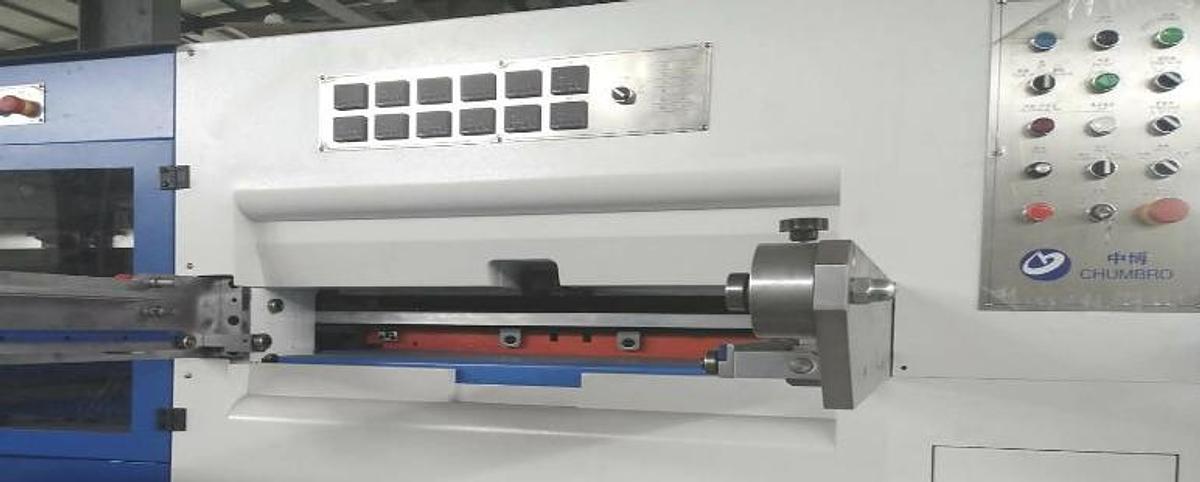

• Side lay can be used for both pull and push, and equipped with fiber optic detector to ensure accuracy.

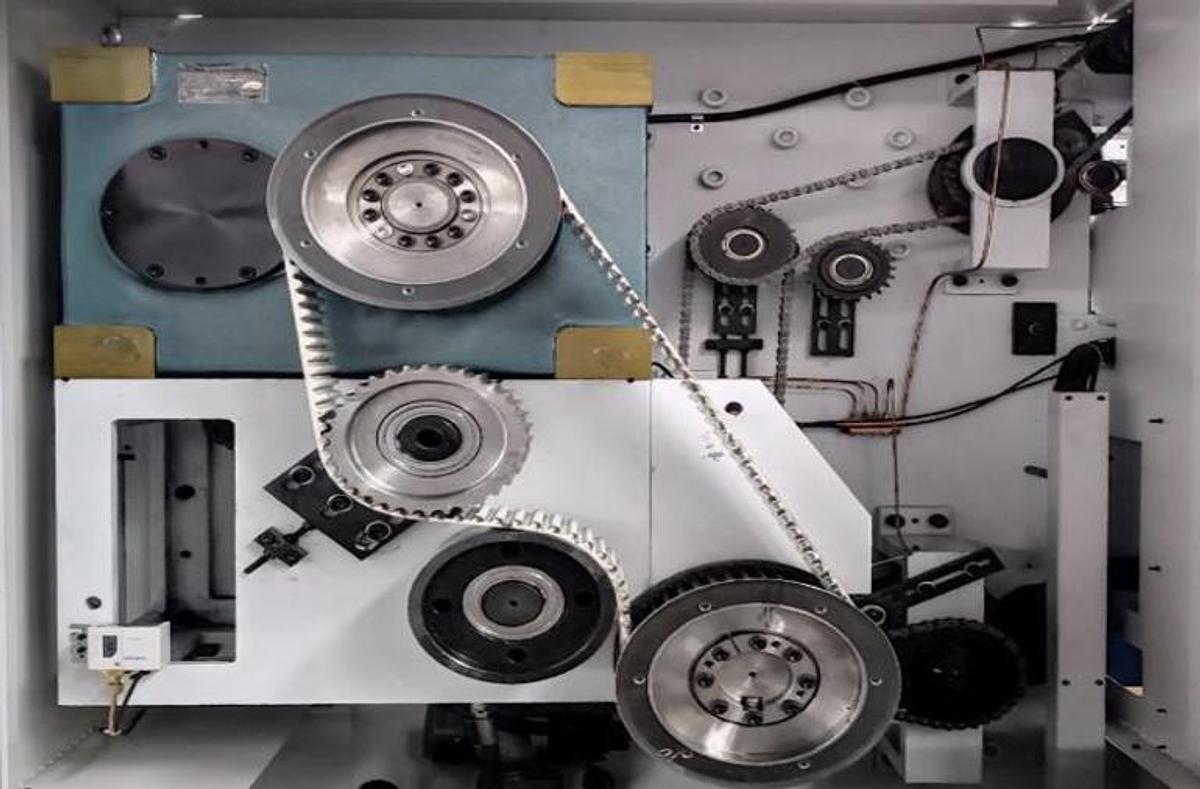

• This machine adopts three-variable cam intermittent indexing mechanism, make the gripper bars running more smooth.

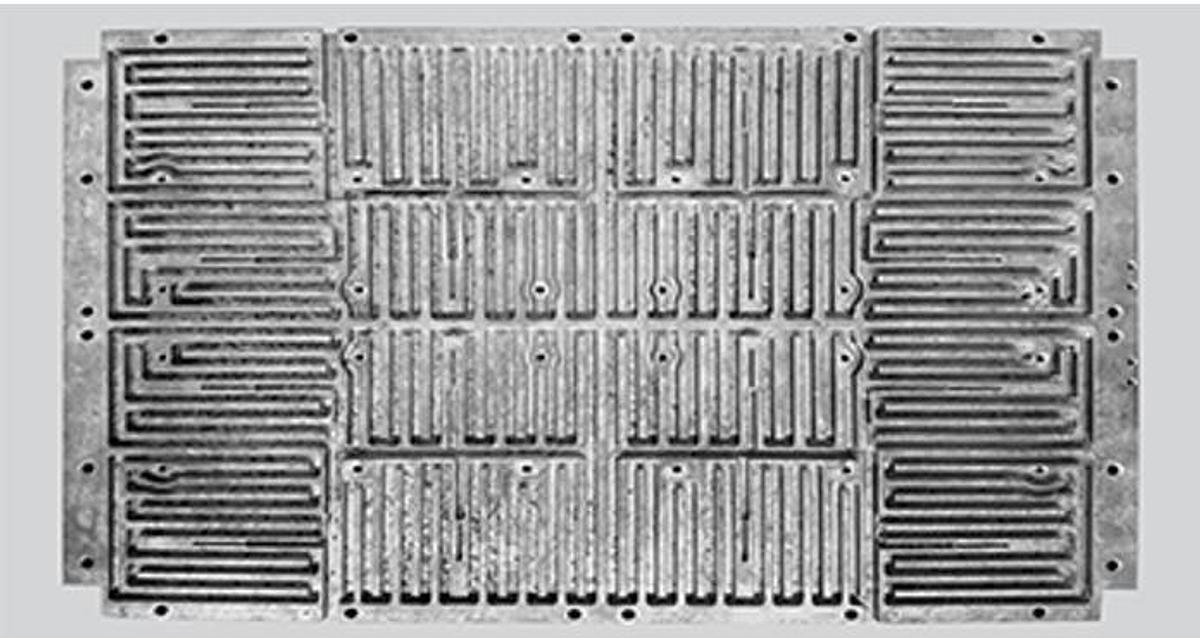

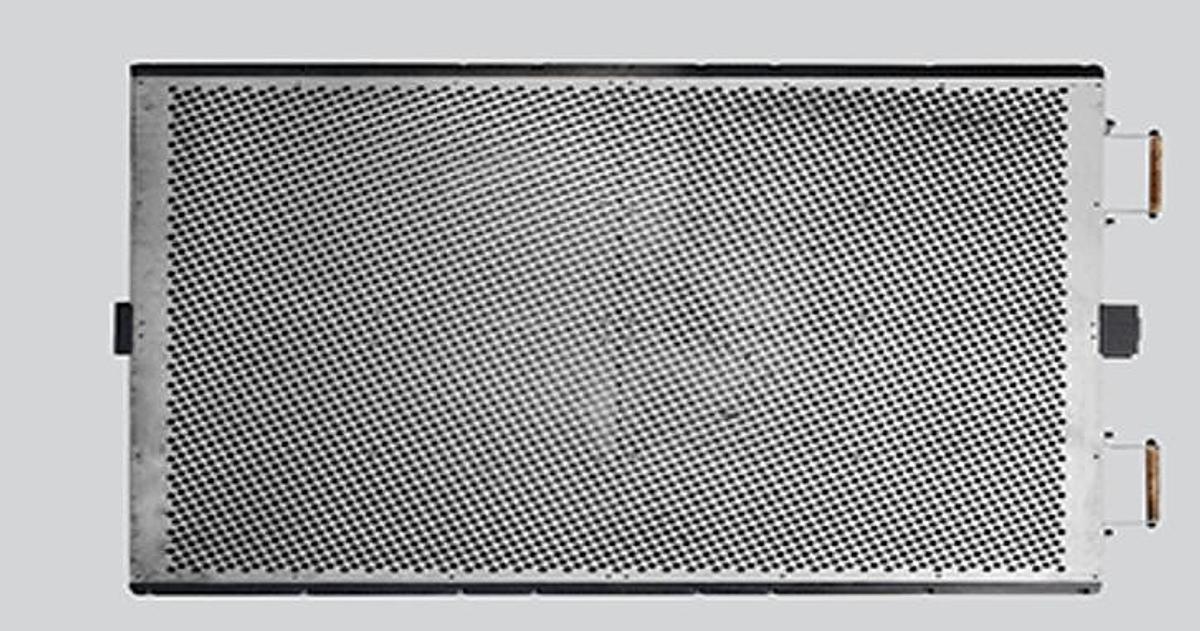

• Honeycomb plate, plate frame , steel chase Pneumatic locking chase positioning system.
• The machine can automatic adjust the pressure, and the pressure shows on the screen.

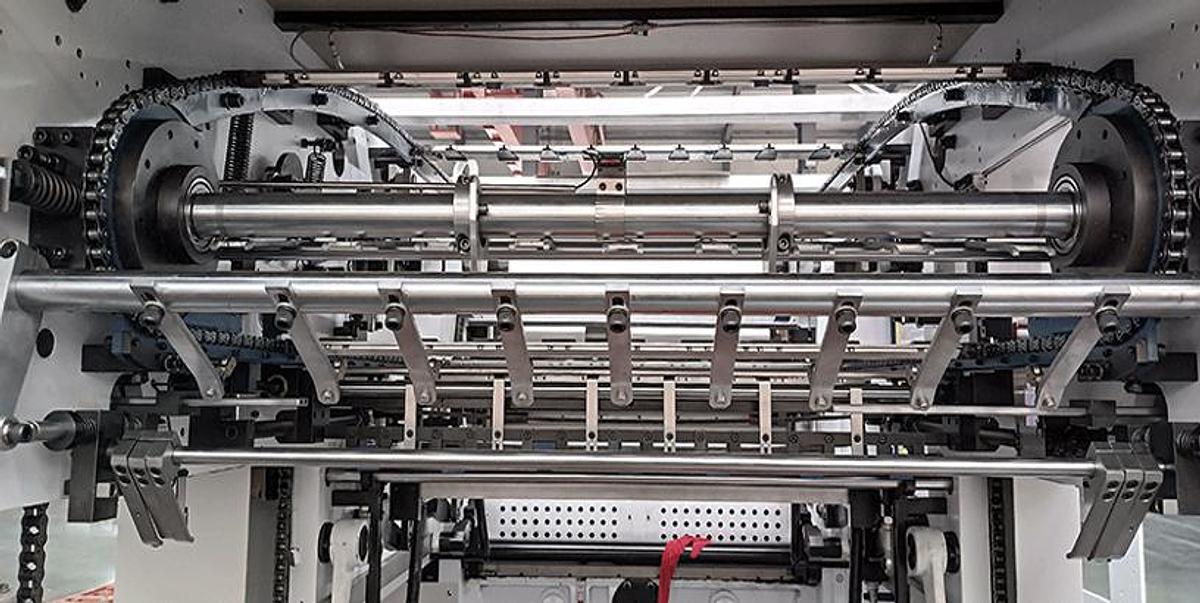

• Pre-stretching the gripper bars and chain which was made in England ensure every pair gripper bars and chain’s accuracy.

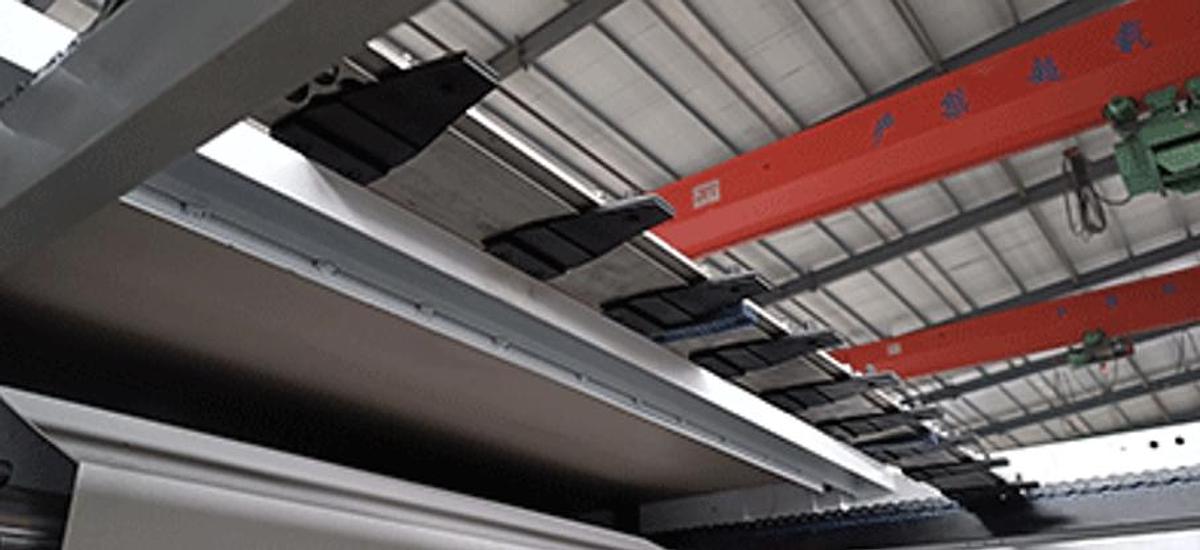

• Equipped with high strength aircraft grade aluminum gripper bars, fore and after position can be adjust.
• Air conditioning thermostatic cooling forced self lubricate system, automatic detect oil flow, and it will shut down when in abnormal running.
• Blowing while collecting , pneumatic paper sampler.
