Tape applicator 800

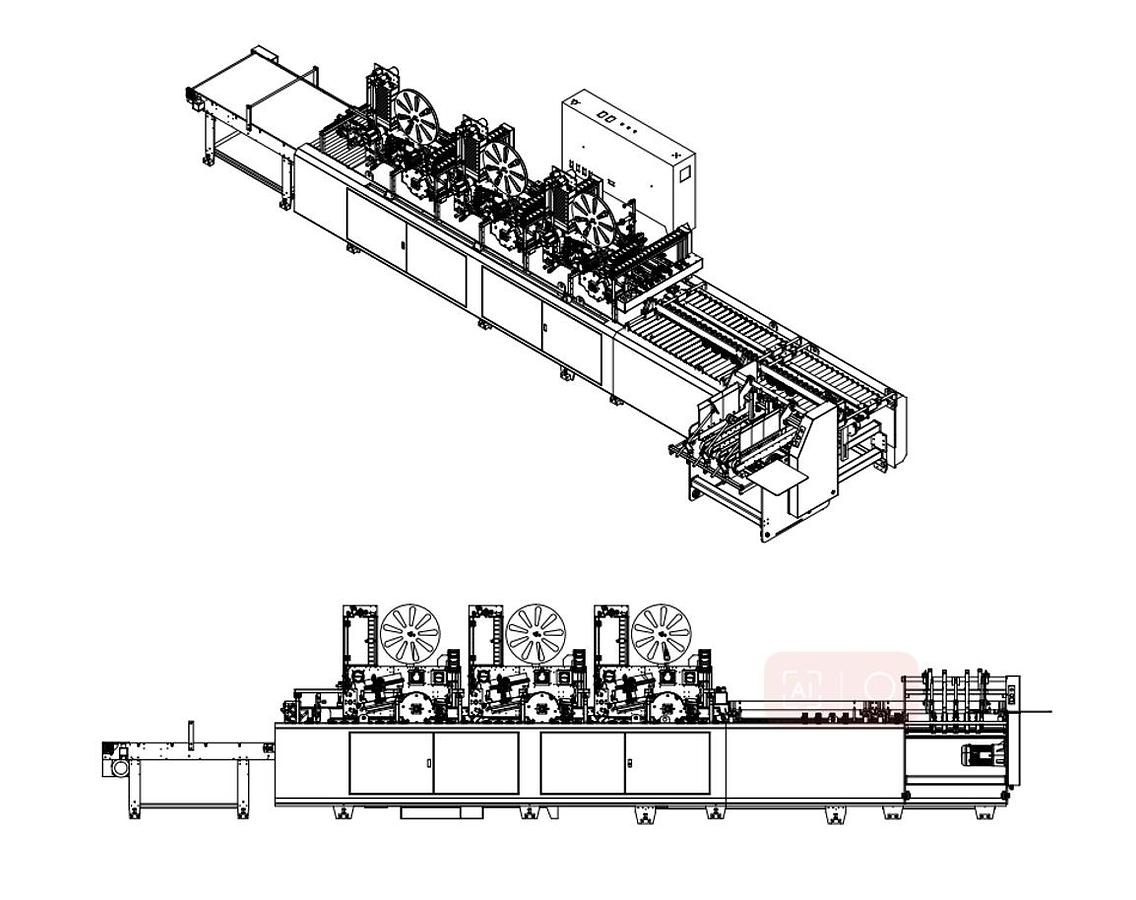

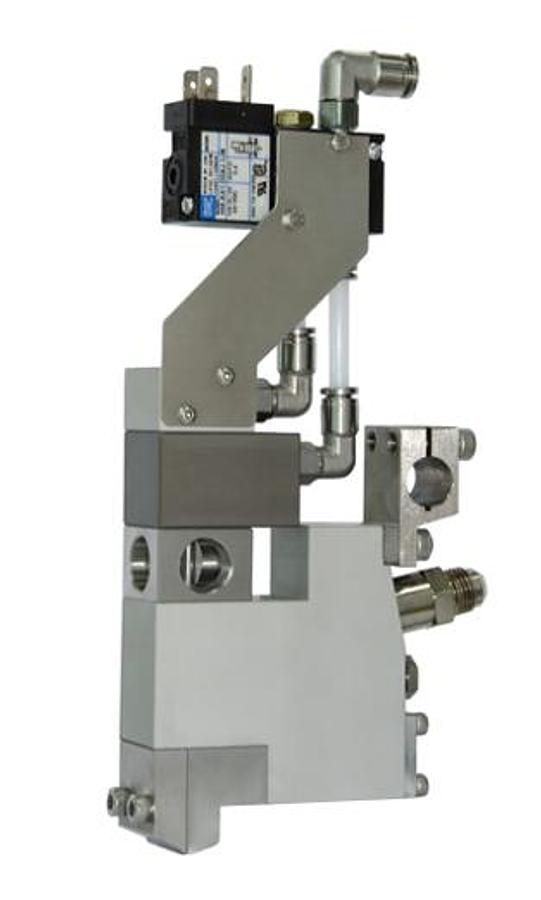

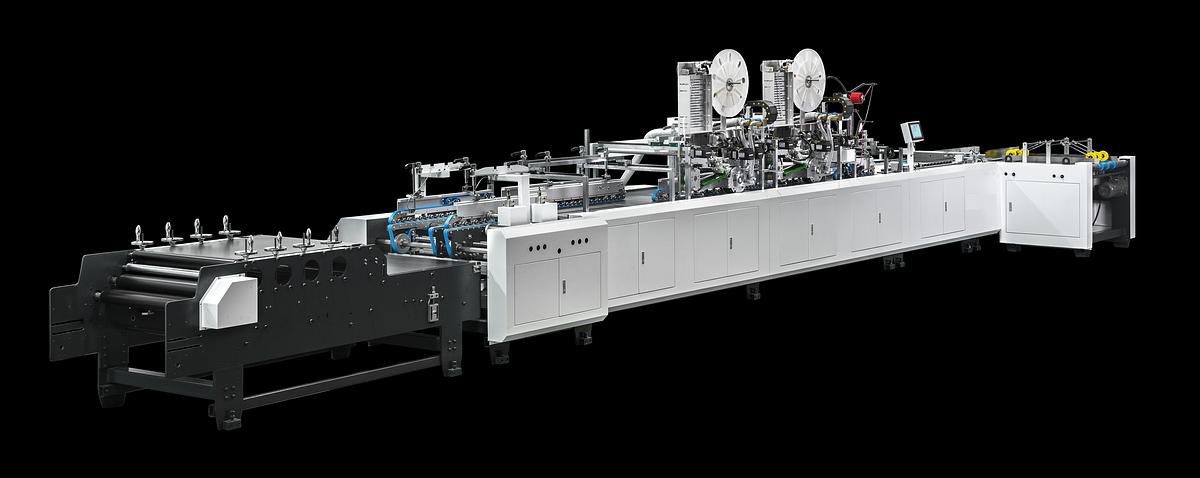

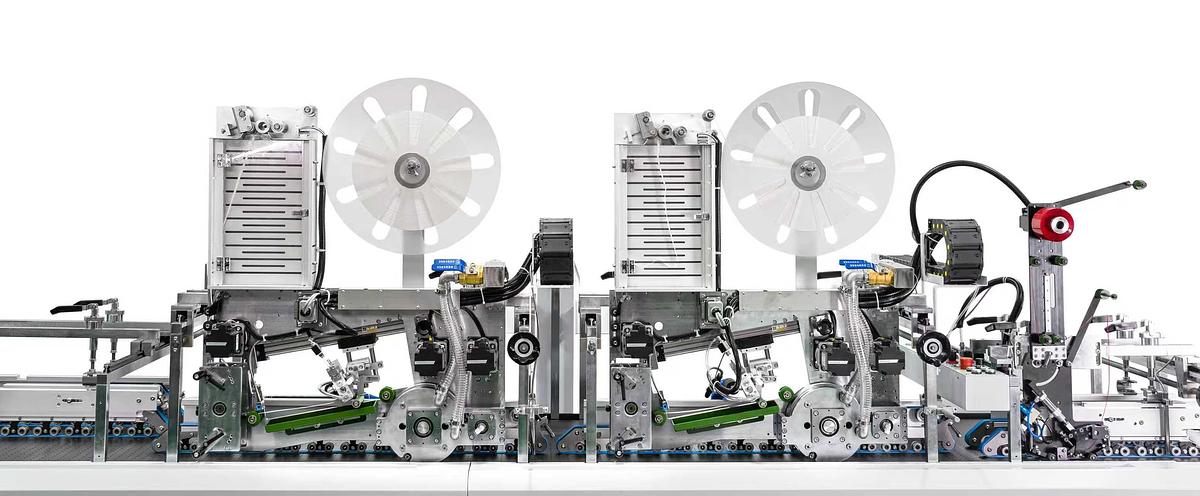

The BBS TS-800L5 is a fully automatic tape applicator machine designed for efficient application of bio-adhesive labels on die-cut substrates. With a generous format capacity, it accommodates box widths from 200 to 800 mm and lengths from 200 to 1000 mm. The machine comes equipped with 2 applicators, which can be adjusted from 1 to 4 sets based on your requirements and 1 Tear tape applicator.

The whole machine is designed for light type, Main drive part adopts synchronous belt, and high precision positioning part adopts precise synchronous gear transmission

Double-sided adhesive tape cutter is tooth type

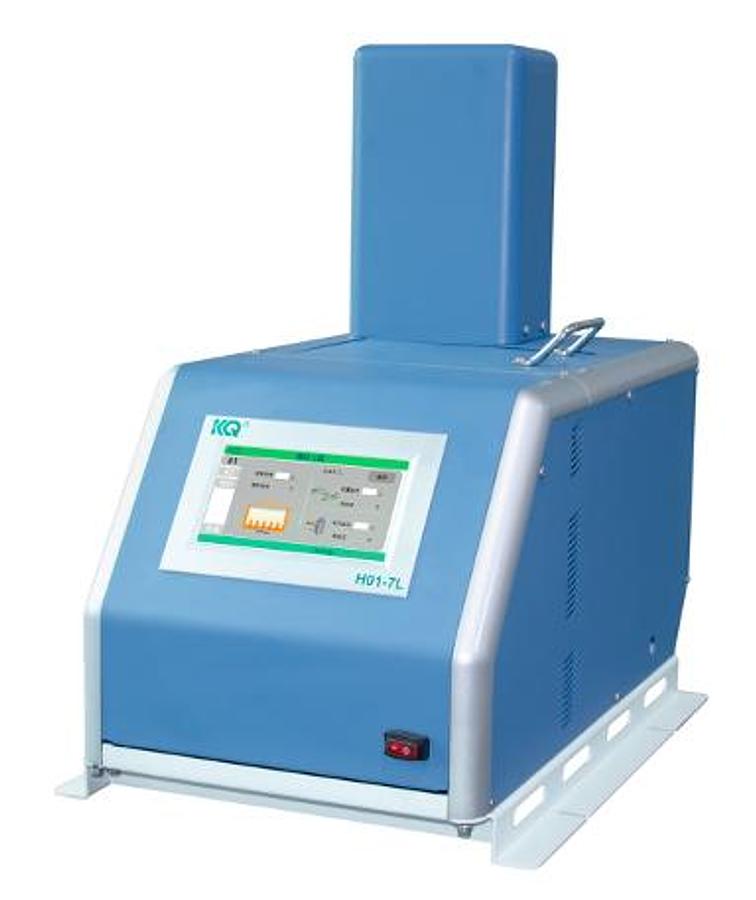

Customer can select optional function and expand required function according to different products This advanced unit offers two solutions for label application: using bio-adhesive tape and hot-melt glue combined with a removable siliconised band. The TS-800L5 is capable of achieving a maximum conveyor tape speed of 80 meters per minute, making it extremely efficient for large-scale operations. Its compact design occupies a floor area of 7000×2500 mm and weighs 2,5 tons, which is manageable in most industrial settings. The machine operates on a power voltage of 380V, with options for customization based on specific client needs, and utilizes a total power of 12.75 KW. The power frequency is adaptable between 50 and 60 Hz, ensuring compatibility with various power systems. This reliable post-press machine offers precision and flexibility for high-volume label application processes.
