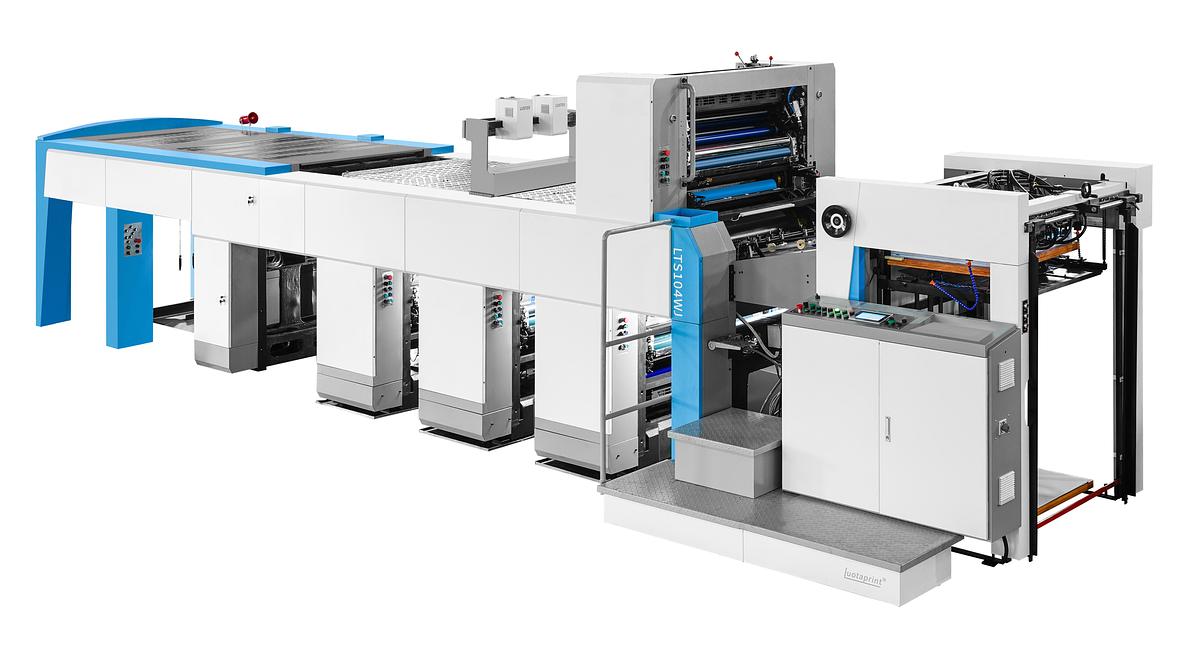

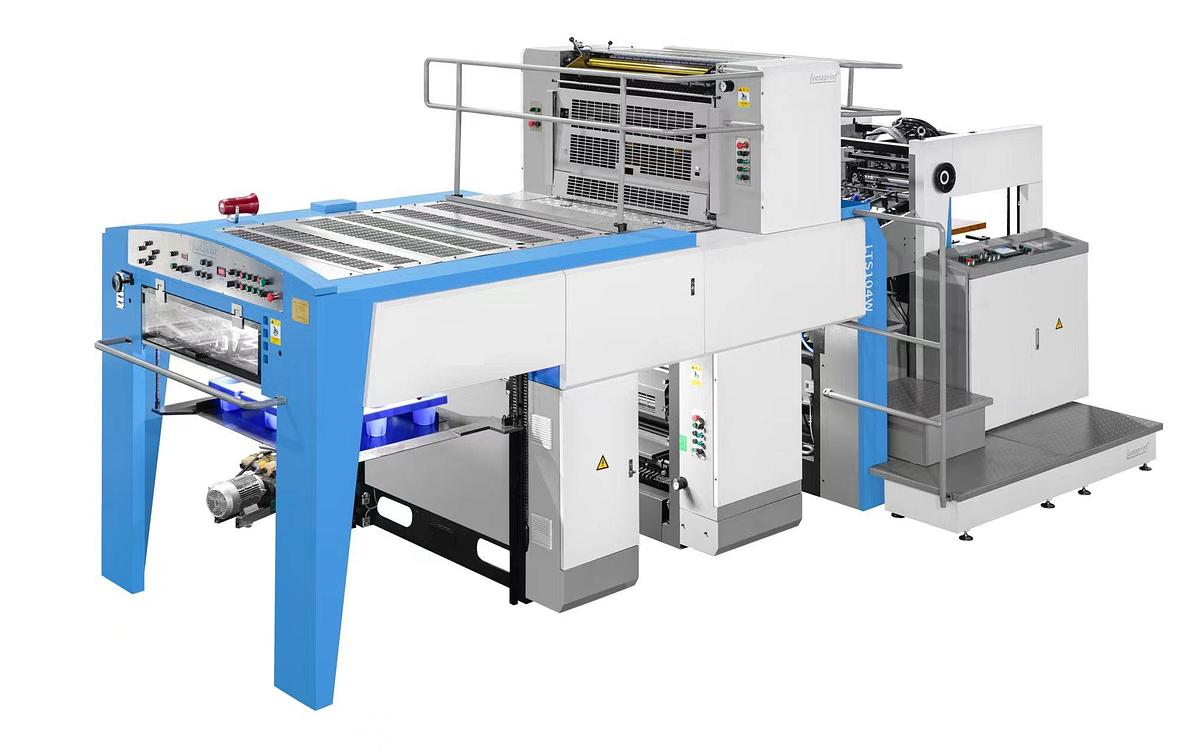

Sheet fed press 1+1

It is a high-speed sheet-fed offset press 1+1 designed for efficient double-sided printing in one pass.

It is ideal for book printing, textbooks, manuals, pharmaceutical leaflets, notebooks, and high-quality commercial printing.

The machine features a robust mechanical structure, precise register control, stable inking and dampening systems, and high productivity with reduced energy consumption.

More than 500 units have already been installed in China and exported to international markets, confirming its reliability and performance.

Printing units

Front and back impression cylinders

Quick plate clamping system

Remote axial and circumferential register adjustment during operation

Ceramic-coated second impression cylinder

Pneumatic engagement of ink and dampening rollers

Inking & dampening

4 form ink rollers

Manual ink keys (standard)

Alcohol dampening system with automatic circulation

Independent motor for dampening duct roller

Electrical & control

PLC control system (Mitsubishi)

Frequency inverter drive

Central control console with fault monitoring

Components (main brands)

Bearings: HRB

Feeder: TONGYE

Registers, cylinders, grippers: MITSUBISHI

Vacuum pump: BECKER

Electrical components: Schneider, Omron, Autonics, Pepperl+Fuchs

Optional accessories (to list separately)

Semi Automatic plate change

Price: EUR 22.000,--

• Automatic ink control for both units

Ink Control System

Price: EUR 54.000,--

• Automatic ink control for both units

Inline Inspection System with Waste Kick-Off

Price: EUR 116.000,--

• 4 × 8K monochrome line-scan cameras (DALSA)
• Front & back inspection
• Automatic defect detection and rejection
• Max inspection speed: 8,500 sheets/hour
• Defects detected:
• dirt, spots, missing print, ink streaks
• color deviation (ΔE ≥ 3)
• register misalignment (±0.1 mm)
• Includes additional transfer cylinders and waste delivery stack
