AUTOMATIC DIGITAL CUTTING MACHINE 1600*2500 mm

Conveyor Belt CNC Flatbed Knife Cutter

Automatic Loading & Unloading | Working Area 1600 × 2500 mm

This CNC flatbed knife cutting system with conveyor belt is designed for high-efficiency, continuous production. The machine is equipped with automatic loading and unloading, making it ideal for industrial applications that require speed, precision, and reduced labor involvement.

Main Features and Configuration

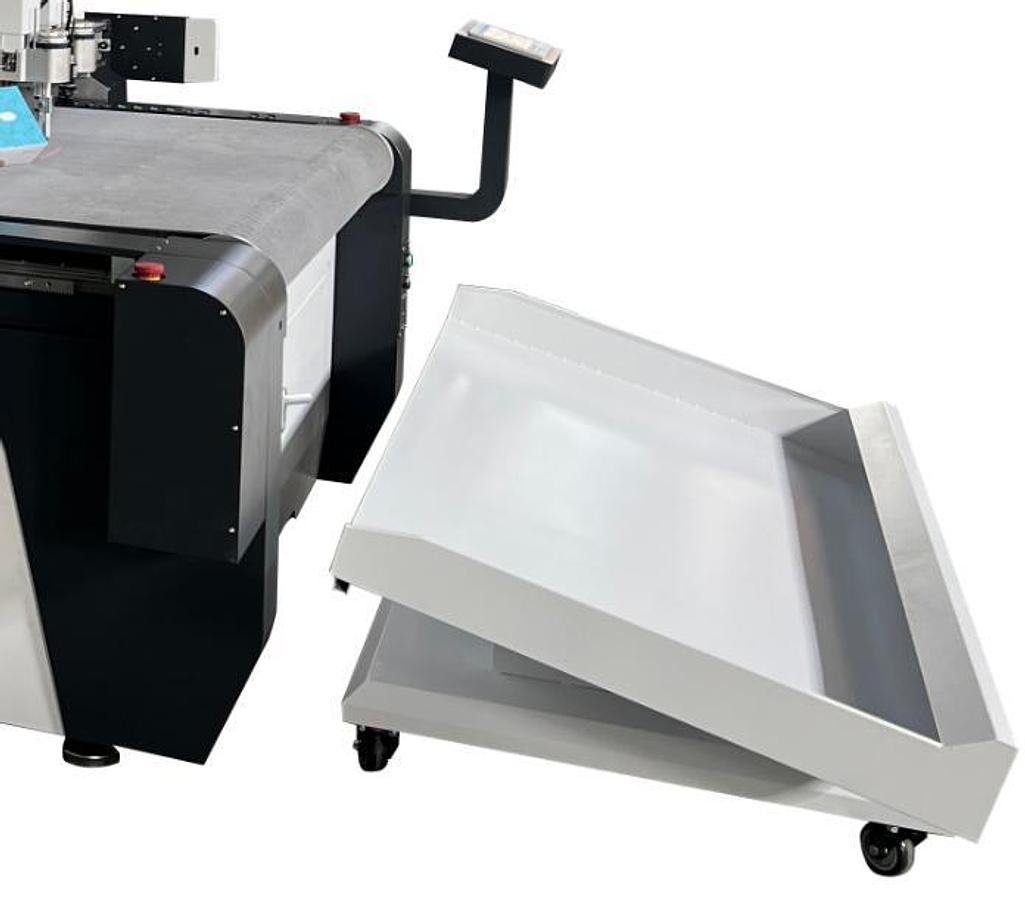

• Automatic Feeder System
• Fully automatic loading and unloading to increase production efficiency and significantly reduce labor costs.

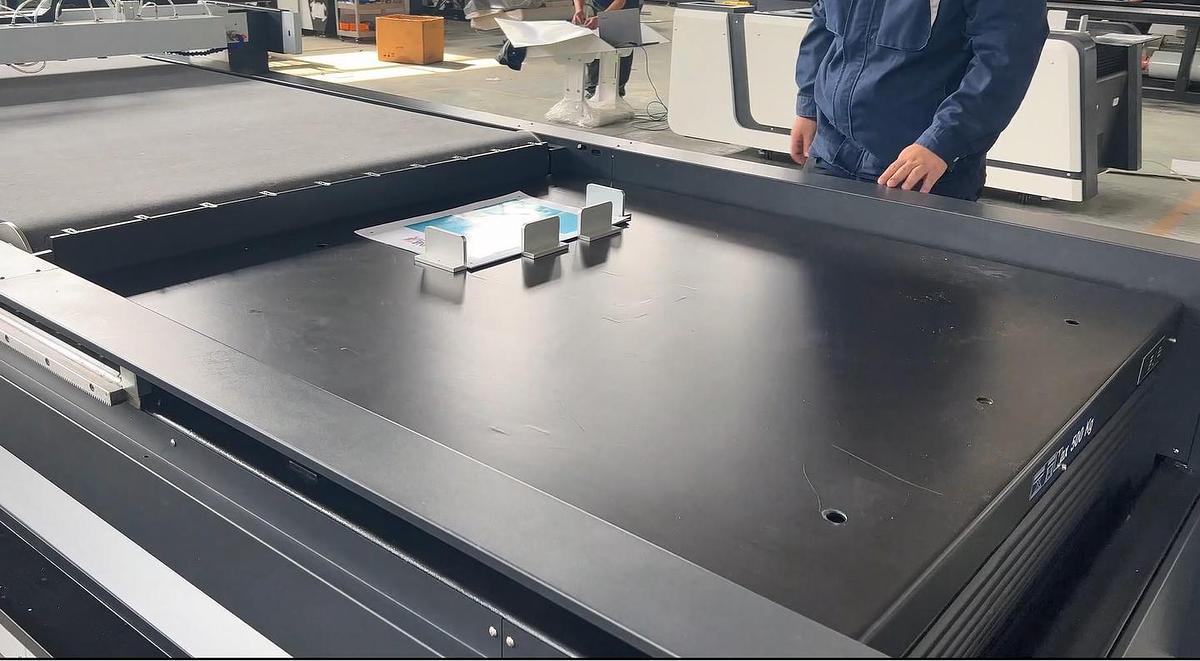

• Vacuum Suction Table
• Vacuum suction system with 8 independently selectable zones, adjustable according to material size to ensure optimal holding performance.
• CCD Camera System
• High-definition CCD camera enabling automatic positioning and contour cutting with high precision on various materials.
• Double Tool Holders
• Dual tool configuration allowing quick and easy tool insertion and replacement, improving flexibility and productivity.
• Electric Oscillating Cutting Tool
• Suitable for cutting:
• paperboard
• corrugated board
• leather
• thin rubber
• carbon fiber
• thin PVC foam board
• PET and similar materials
• Creasing Tool
• Ideal for creasing corrugated board, cardboard, and plastic corrugated materials.
• Maximum material thickness: ≤ 7 mm.
• Marking Pen Tool
• Used for marking and labeling directly on materials.
• Conveyor Belt (Consumable)
• Protects the vacuum table and supports continuous material feeding.
• Belt thickness: 4 mm.

Included Consumables

• Oscillating Knife ZX-35: 10 pcs (for materials ≤ 7 mm)
• Oscillating Knife ZX-18CT: 10 pcs (for materials ≤ 17 mm)
• Marking Pen Refills: 30 pcs included
• Red Laser Pointer
• Used for accurate zero-point positioning.
• CNC Software
• Multilingual interface supporting English, Spanish, French, and more.

Machine Type

Fixed Table Double-Head CNC Knife Cutting Machine with Conveyor System

Key Benefits

• 3-year warranty
• Suitable for a wide range of applications, from paper and cardboard to leather and fabric
• 70% of new customers come from competitors
• Certified GB and ISO 9001 Quality Management System
• Modular cutting systems designed for versatility and scalability
• Proven solution for cutting a wide variety of materials with precision and reliability
