BBS Intelligent Quality Offline Control Systems DPS1040

BBS offline quality inspection system for printed sheets up to 1040 × 720 mm. It compares the printed product with a PDF/TIFF file or an approved sample and detects omissions, ink spots, missing characters, content shifts, and color differences in less than 30 seconds.

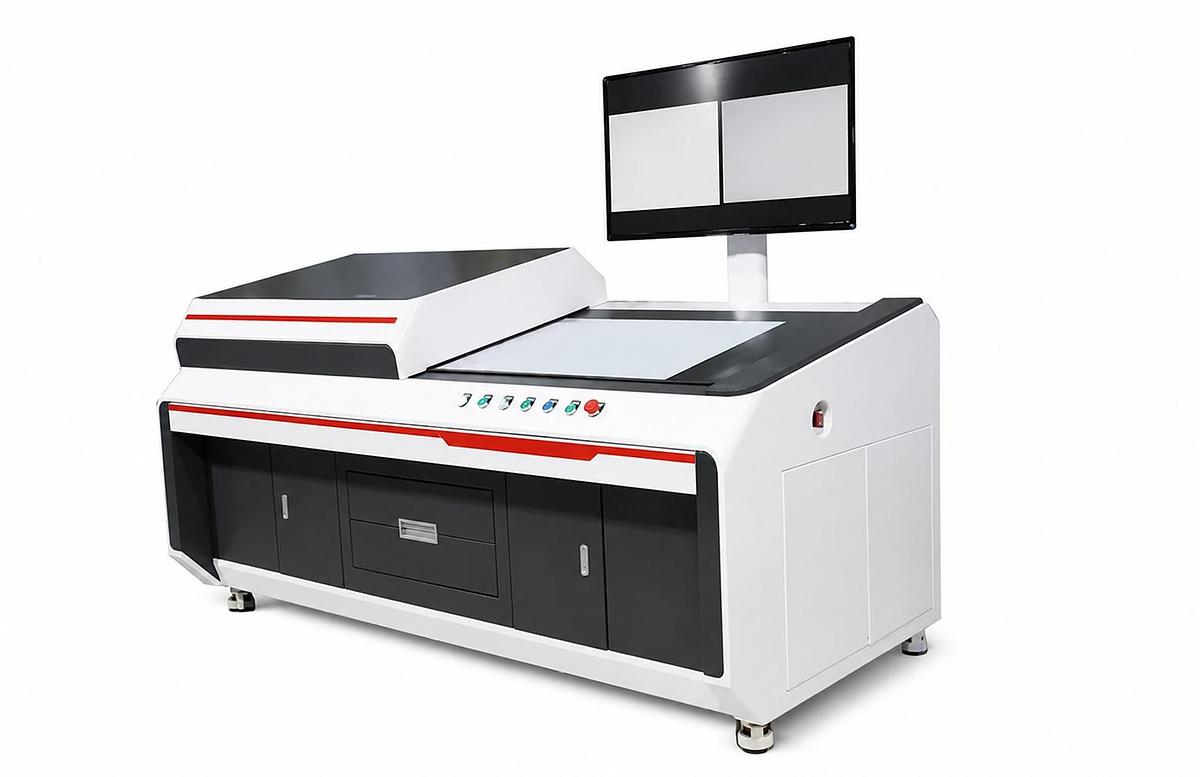

The BBS DPS1040 is a high-precision offline inspection system designed to verify the quality and completeness of printed products.

The machine captures an image of the printed sheet and automatically compares it with an approved digital file, such as PDF or TIFF, or with a reference sample. Within a few seconds, it can identify omissions, missing characters, ink spots, printing defects, content shifts, and color differences.

It is particularly suitable for printing companies, binderies, publishing companies, packaging manufacturers, and quality control departments seeking to reduce human error, prevent repeated waste, and improve production traceability.

Main Functions

First-Sheet Inspection

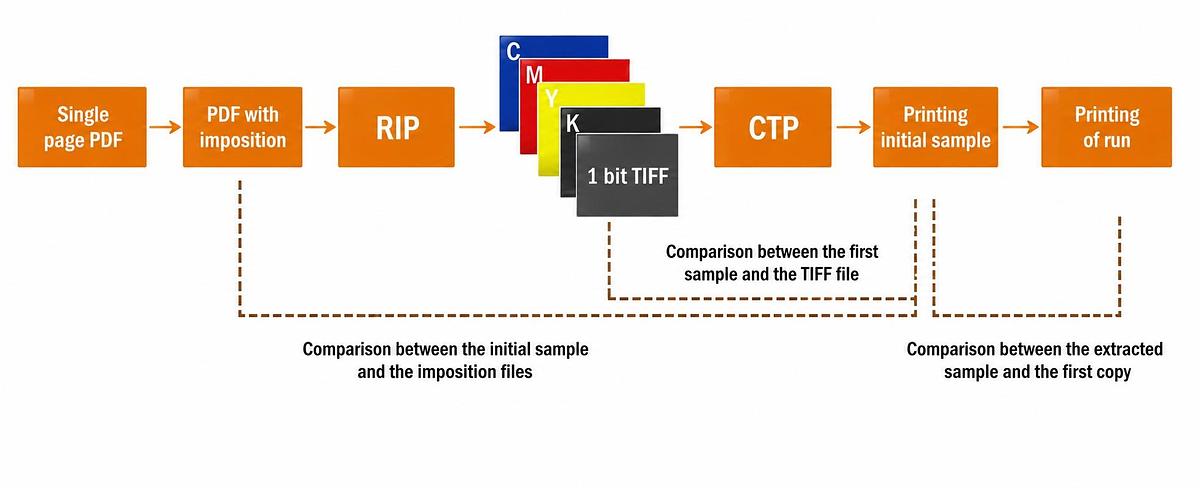

The system compares the first printed sheet with the approved digital file to verify that text, images, graphic elements, and content are complete and correctly positioned.

In-Process Sampling Inspection

Sheets taken during production can be compared with the approved first sample or the electronic file, allowing the operator to identify quality variations quickly.

Automatic Defect Detection

The system can detect:

• missing print or unprinted areas;
• ink dots and stains;
• missing characters, strokes, and punctuation marks;
• incomplete foreign-language characters;
• missing screens or halftones;
• plate scratches or damage;
• text or content displacement;
• linear defects;
• color differences compared with the approved sample.

Standard Configuration

The system includes:

• 16K industrial color camera with dedicated lens;
• image acquisition unit;
• industrial server with GPU image processing;
• lighting system;
• motion control unit;
• PLC and servo control system;
• mechanical scanning platform;
• vacuum pump for sheet flattening;
• LCD monitor;
• electrical cabinet;
• defect detection and analysis software.

Customer Benefits

• Reduces the risk of producing complete batches with incorrect content.
• Replaces lengthy and subjective manual inspection procedures.
• Reduces waste caused by repeated printing defects.
• Supports the inspection of text, formulas, foreign languages, and fine graphic details.
• Records inspection parameters, results, and defect images.
• Improves quality control traceability.
• Can support multiple printing machines through optional client stations.
• Can be integrated with MES or ERP management systems.

Recommended Applications

The BBS DPS1040 is suitable for inspecting:

• books and publishing products;
• magazines and periodicals;
• technical manuals;
• educational materials;
• commercial print products;
• offset-printed sheets;
• packaging and folding cartons;
• multilingual and text-intensive jobs;
• products where content accuracy is critical.
